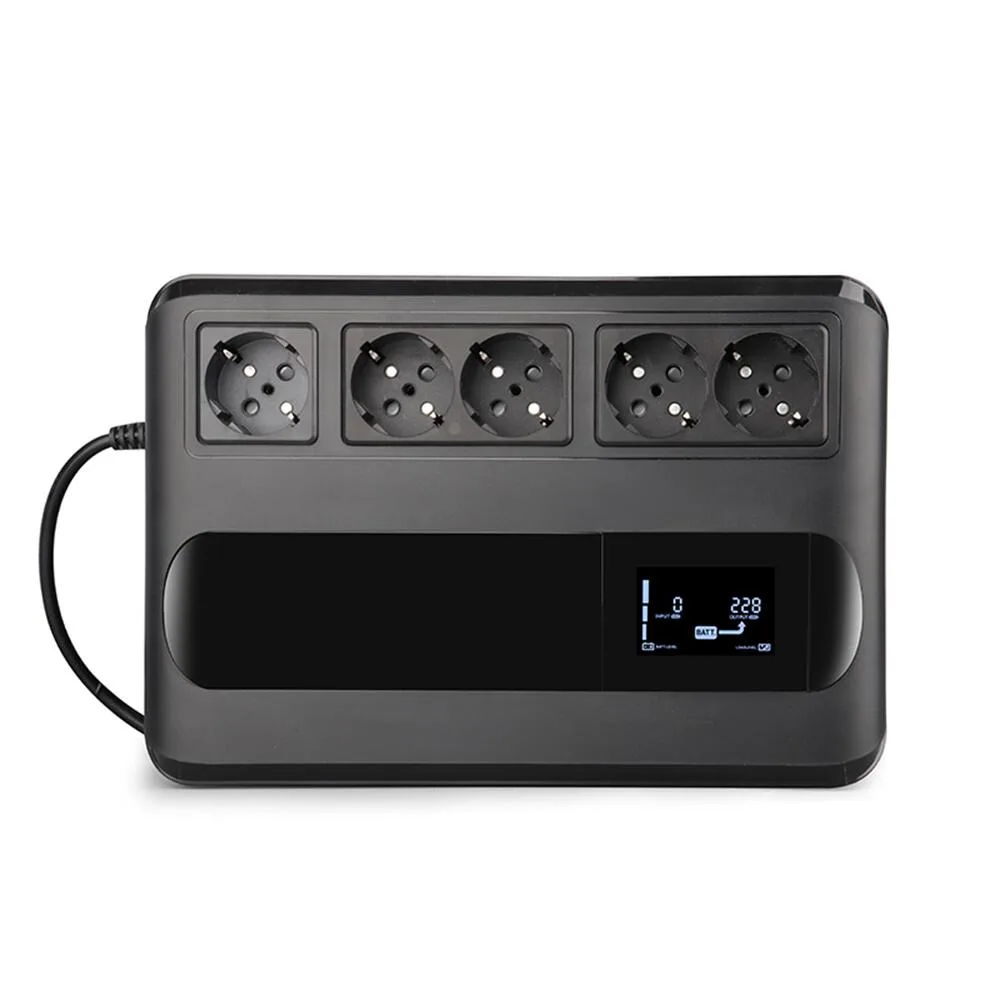

GF1000
- 1 kVA / 600 W
- Typical 2-6ms, 10ms max
- Simulated Sine Wave
Request a quotePrice on request · FOB China
Sockets Default configuration shown. Change the type or number (max 10).
Number of sockets / 10
OEM with your logo from 1000 pcs · sample US$3,000, refunded on the bulk order
Specifications
- Model
- GF1000
- Capacity
- 1000VA/600W
- Input voltage
- 110V/120Vac or 220V/230Vac
- Input voltage range
- 81-145Vac or 162-268/170-280Vac
- Input frequency
- 50/60Hz (Auto sensing)
- Output voltage
- 110V/120Vac or 220V/230Vac
- Output regulation
- ±10%
- Waveform (battery mode)
- Simulated Sine Wave
- Transfer time
- Typical 2-6ms, 10ms max
- Frequency (battery mode)
- 50/60Hz
- Battery voltage
- 12V
- Battery
- 12V9AH × 1
- Charge current
- 1A
- Recharge time
- 8 hours recover to 90% capacity
- LED indicators
- AC mode: Green lighting Battery mode: Yellow lighting Fault: Red lighting
- LCD display
- AC mode, Battery mode, Load level, Battery level, Input voltage, Output voltage, Overload and low battery
- Protection
- Discharge, Short circuit and overload protection
- Audible alarms
- Battery mode: Sounding every 10 seconds Low battery: Sounding every second Overload: Sounding every 0.5 seconds Fault: Continuously sounding
- Interface
- Support windows xp/vista, windows 7/8/11 and MAC
- Noise
- Less than 40dB(1m spacing)
- Dimensions (mm)
- 285 × 193 × 103
- Net weight (kg)
- 6.1
- Sockets (default)
- 5 × Universal
