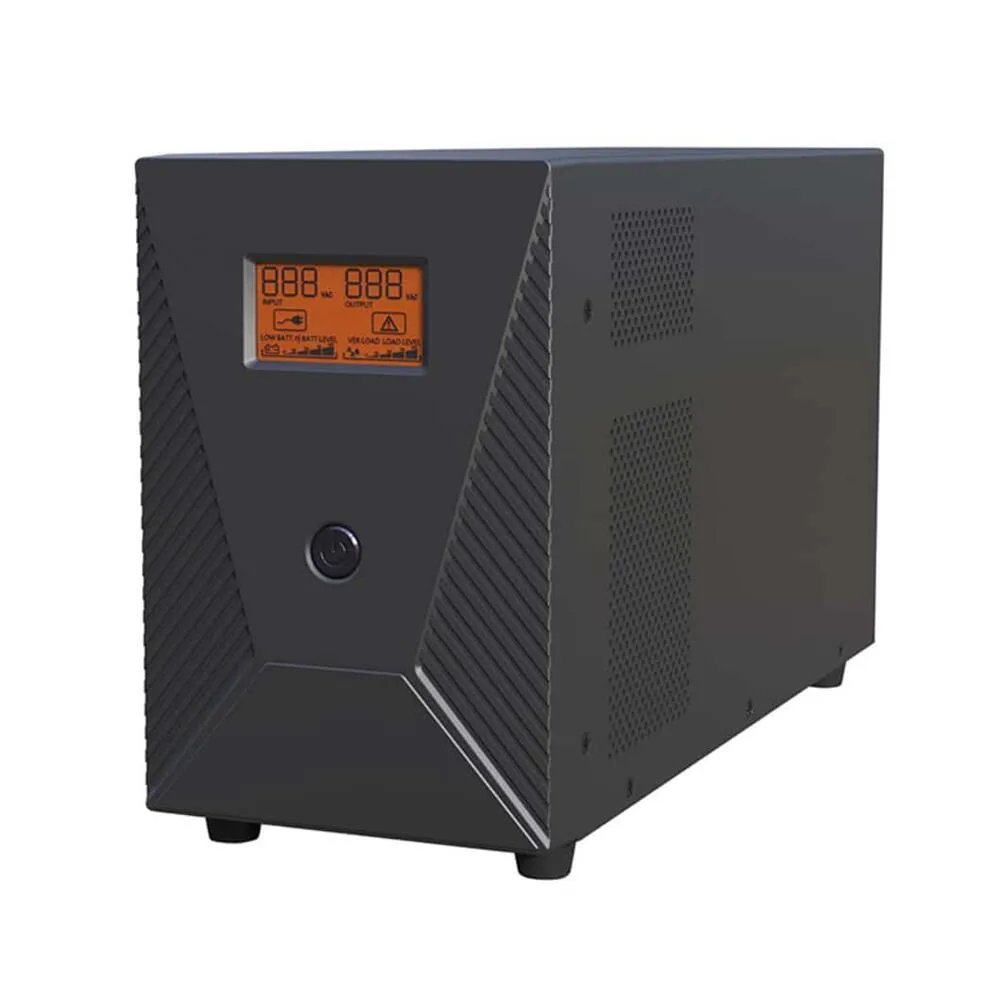

GS1000
- 1 kVA / 600 W
- Typical 2–8 ms, 13 ms max
- Simulated Sine Wave
SKE GS1000 is a 1000VA/600W offline ups designed for Personal Computer, Printer, Modem/Router, Security Monitoring, POS Terminal
Your brand on this model?OEM from 1000 pcs →Request a quotePrice on request · FOB China
Sockets Default configuration shown. Change the type or number (max 10).
Number of sockets / 10
OEM with your logo from 1000 pcs · sample US$3,000, refunded on the bulk order
Specifications
- Model
- GS1000
- Capacity
- 1000VA/600W
- Input voltage
- 110/120 Vac or 220/230 Vac
- Input voltage range
- 81–134 Vac / 89–145 Vac or 140–290 Vac / 140–300 Vac
- Input frequency
- 50/60 Hz (Auto sensing)
- Output voltage
- 110/120 Vac or 220/230 Vac
- Output regulation
- ±10%
- Waveform (battery mode)
- Simulated Sine Wave
- Transfer time
- Typical 2–8 ms, 13 ms max
- Frequency (battery mode)
- 50/60 Hz ±1 Hz
- Battery voltage
- 12V
- Battery
- 12V7AH×2
- Charge current
- 1A
- Recharge time
- 8 hours recover to 90% capacity
- LED indicators
- AC mode: Green lighting Battery mode: Yellow lighting Fault: Red lighting
- LCD display
- AC mode, Battery mode, Load level, Battery level, Input voltage, Output voltage, Overload and low battery
- Protection
- Discharge, short circuit and overload protection
- Audible alarms
- Battery mode: Sounding every 10 seconds Low battery: Sounding every second Overload: Sounding every 0.5 seconds Fault: Continuously sounding / LCD with fault code
- Interface
- USB/RS232 port (optional); supports Windows XP/Vista/7/8/11 and MAC
- Noise
- Less than 40 dB (1m distance)
- Humidity
- 0–90% RH @ 0–40°C (non-condensing)
- Dimensions (mm)
- 306×86×140
- Net weight (kg)
- 8.7
